UH-60 Black Hawk,United States of America

The Black Hawk is the Army’s front-line utility helicopter used for air assault, air cavalry, and aeromedical evacuation units. It is designed to carry 11 combat-loaded, air assault troops, and it is capable of moving a 105-millimeter howitzer and 30 rounds of ammunition. First deployed in 1978, the Black Hawk’s advanced technology makes it easy to maintain in the field. The Black Hawk has performed admirably in a variety of missions, including air assault, air cavalry and aeromedical evacuations.

   In addition, modified Black Hawks operate as command and control, electronic warfare, and special operations platforms. The UH-60A, first flown in October 1974, was developed as result of the Utility Tactical Transport Aircraft System (UTTAS) program. The UTTAS was designed for troop transport, command and control, MedEvac, and reconnaissance, to replace the UH-1 Series "Huey" in the combat assault role. In August 1972, the U.S. Army selected the Sikorsky (model S-70) YUH-60A and the Boeing Vertol (model 237) YUH-61A (1974) as competitors in the Utility Tactical Transport Aircraft System (UTTAS) program. The Boeing Vertol YUH-61A had a four-bladed composite rotor, was powered by the same General Electric T700 engine as the Sikorsky YUH-60A, and could carry 11 troops. In December 1976 Sikorsky won the competition to produce the UH-60A, subsequently named the Black Hawk.


  The Black Hawk is the primary division-level transport helicopter, providing dramatic improvements in troop capacity and cargo lift capability compared to the UH-1 Series "Huey" it replaces. The UH-60A, with a crew of three, can lift an entire 11-man fully-equipped infantry squad in most weather conditions. It can be configured to carry four litters, by removing eight troop seats, in the MedEval role. Both the pilot and co-pilot are provided with armor-protective seats. Protective armor on the Black Hawk can withstand hits from 23mm shells. The Black Hawk has a cargo hook for external lift missions. The Black Hawk has provisions for door mounting of two M60D 7.62mm machine guns on the M144 armament subsystem, and can disperse chaff and infrared jamming flares using the M130 general purpose dispenser. The Black Hawk has a composite titanium and fiberglass four-bladed main rotor, is powered by two General Electric T700-GE-700 1622 shp turboshaft engines, and has a speed of 163 mph (142 knots).

   Elements of the US Army Aviation UH-60A/l Blackhawk helicopter fleet will begin reaching their sevice life goal of 25 years in 2002. In order for the fleet to remain operationally effective through the time period 2025-2030 the aircraft will need to go through an inspection, refurbishment, and modernization process that will validate the structural integrity of the airframe, incorporate improvements in sub-systems so as to reduce maintenance requirements, and modernize the mission equipment and avionics to the levels compatible with Force XXI and Army After Next (AAN) demands. A Service Life Extension Program (SLEP) is planned for the UH-60 beginning in FY99. The UH-60 modernization program will identify material requirements to effectively address known operational deficiencies to ensure the Black Hawk is equipped and capable of meeting battlefield requirements through the 2025-2030 timeframe. Primary modernization areas for consideration are: increased lift, advanced avionics (digital communications and navigation suites), enhanced aircraft survivability equipment (ASE), increased reliability and maintainability (R & M), airframe service life extension (SLEP), and reduced operations and support (O & S) costs. Suspense date for the approved Operational Requirements Document (ORD) is December 1998.
  The S-70A helicopter is the export version of the multi-mission UH-60 Black Hawk helicopter,but there are many variants.

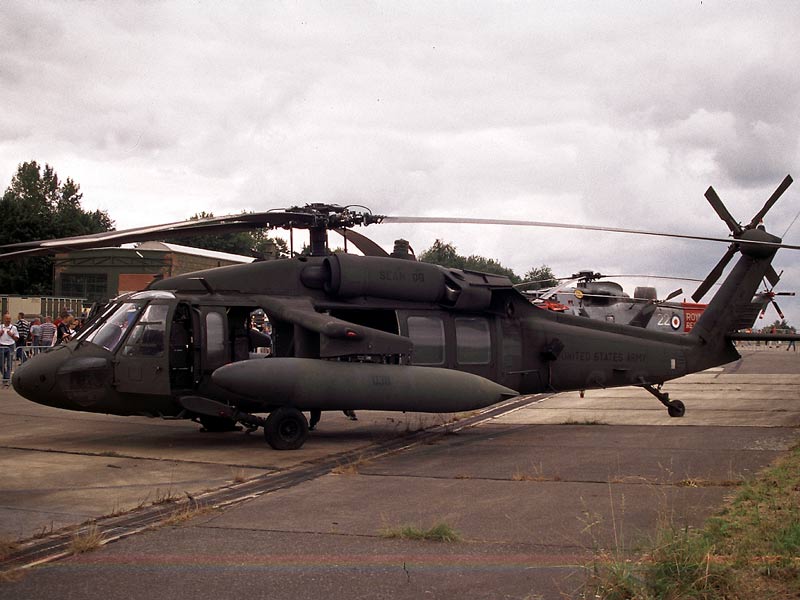

UH-60L

UH-60 Firehawk

EH-60A

EH-60B

UH-60Q MEDEVAC

MH-60G Pave Hawk
